SKU:BANDA-ELECTRABASS2K1

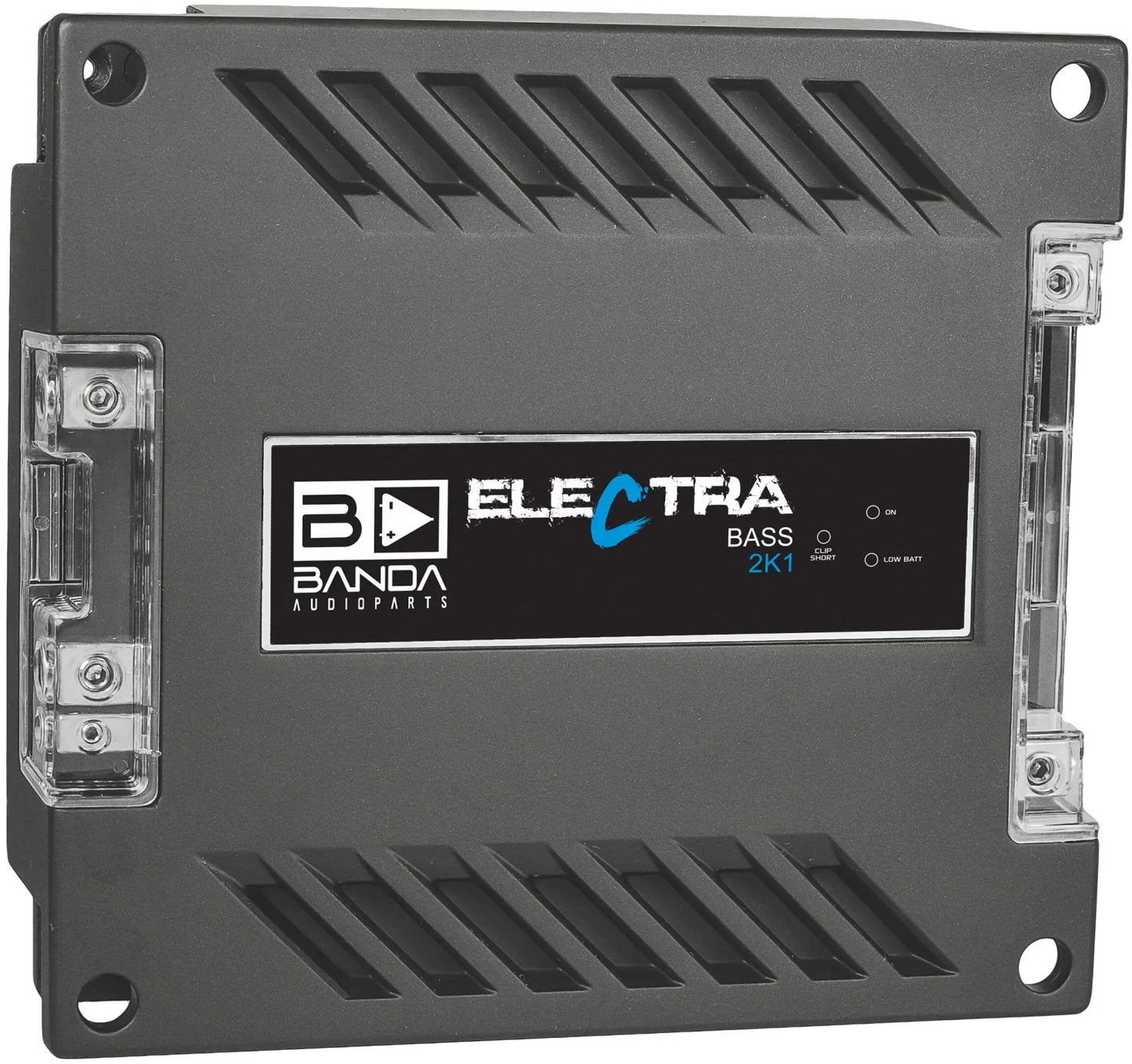

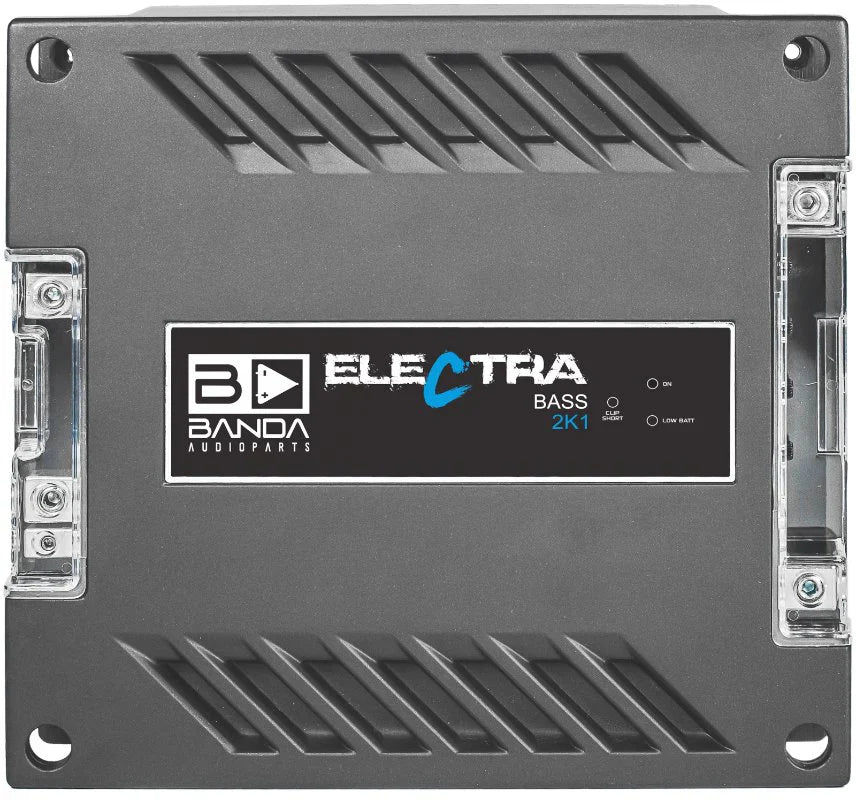

Banda Electra Bass 2K1 Amplifier Audio Car 2.000 Watts RMS 1 ohm
Couldn't load pickup availability
About the Product
The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to this, the ELECTRA will only play Subwoofers , Bass . The BASS BOOST @ 45Hz feature is a differentiator, further reinforcing the bass of your system.
Designed on a 100% aluminum chassis , it works with a power of 2000 WRMS with 1 input channel for connection and an impedance of 1 Ohm. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. Furthermore, it has a bold and clean design, matching any sound system.
Technical specifications
|
Maximum Power 14.4v @ 1 Ohm |
2600 WRMS |
|
Maximum Power 14.4v @ 2 Ohms |
2000 WRMS |
|
Maximum Power 12.6v @ 1 Ohm |
2000 WRMS |
|
Maximum Power 12.6v @ 2 Ohms |
14800 WRMS |
|
Efficiency @ 2 Ohms |
77% |
|
Efficiency @ 1 Ohm |
65% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+N |
0.10% |
|
Input Sensitivity |
160mV – 4V |
|
Signal to Noise Ratio |
70dB |
|
Frequency Response (Switch OFF) |
5 a 500Hz (-3dBs) |
|
Frequency Response |
20 a 500Hz (-3dBs) |
|
Bass Boost @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsônico) |
20 to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80 to 500Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
100 A |
|
Rest Current |
2A |
|
Maximum Current (sine signal) |
220 A |
|
Maximum Current (musical signal) |
110 A |
|
Power Cables (recommended min.) |
21mm / 4 AWG |
|
Output Cables (recommended min.) |
2 x 4mm / 2 x 11 AWG |
|
Weight (kg) |
3.3 |
|
Height (mm) |
54 |
|
Width (mm) |
209 |
|
Depth (mm) |
243 |
