SKU:MD3000 1OHM

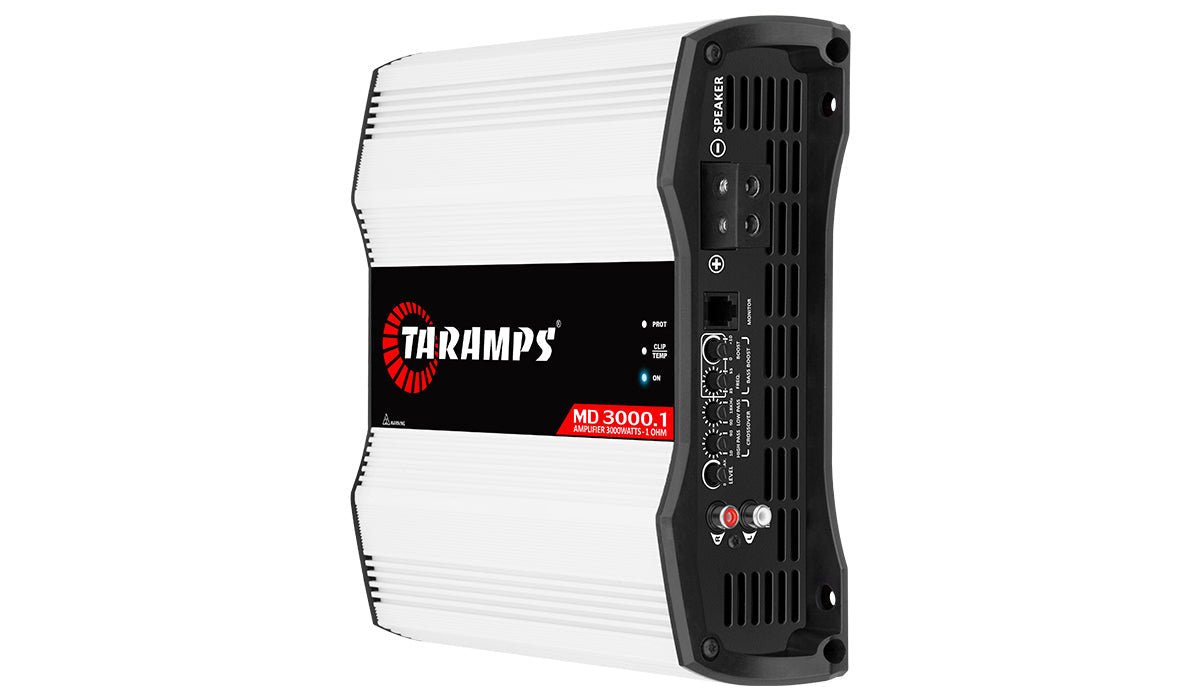

MD 3000.1 – 1 OHM Class D Taramps Amplifier (1 Channel of 3000 Watts RMS)
$239.00 USD
$239.00 USD
Sale
Sold out
Re-stocking soon
Couldn't load pickup availability
About the Product
Description
The Taramps MD 3000.1 in the 1 Ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 3000-Watts RMS. Welcome to Taramps audio world.
Technical information
| 1 Ohm VERSION | Nominal Power @12.6VDC 1 Ohm: 3000W RMS 2 Ohms: 1920W RMS 4 Ohms: N/A 8 Ohms: N/A |
|---|---|
| Number of Channels | 01 |
| Maximum power | (PT) |
| Input Sensitivity | 220 mV |
| Signal to Noise Ratio | >90dB |
| Frequency Response | 10Hz ~ 18KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~ 90Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 90Hz ~ 18KHz (-12dB/8ª) Variable |
| bass boost | Freq.: 35Hz ~ 55Hz Boost: 0 ~ 10dB (50Hz) |
| Efficiency | 79% |
| Input Impedance | 15K Ohms |
| Output Impedance | 1 Ohm |
| protection system | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption at rest | 1A |
| Maximum music consumption | 150A |
| Maximum consumption in sinusoidal signal | 300A |
| Dimensions (WxHxD) | 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) |
| Weight | 5.5lb (2,5kg) |
