SKU:PRV WGP14-50 PINK CR

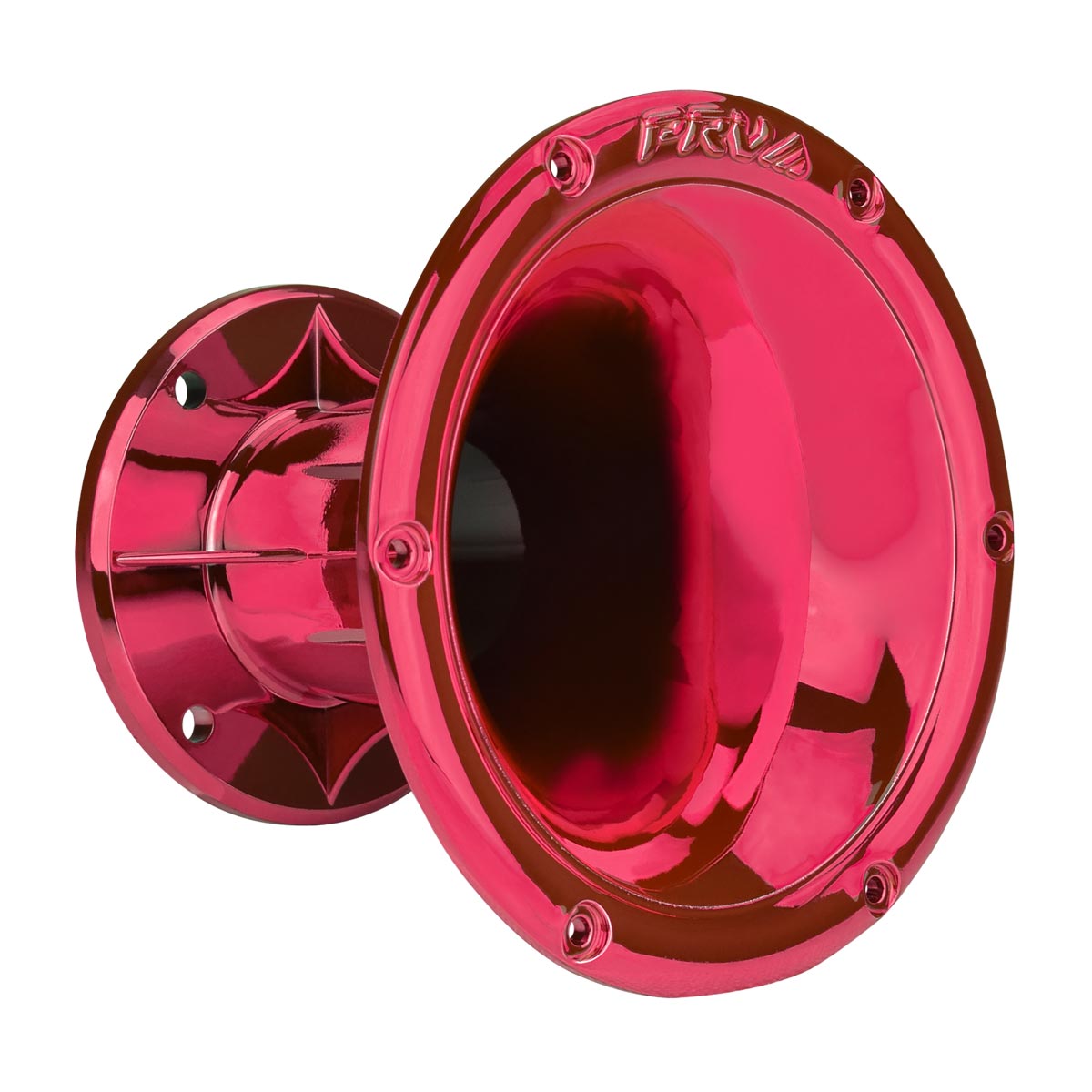

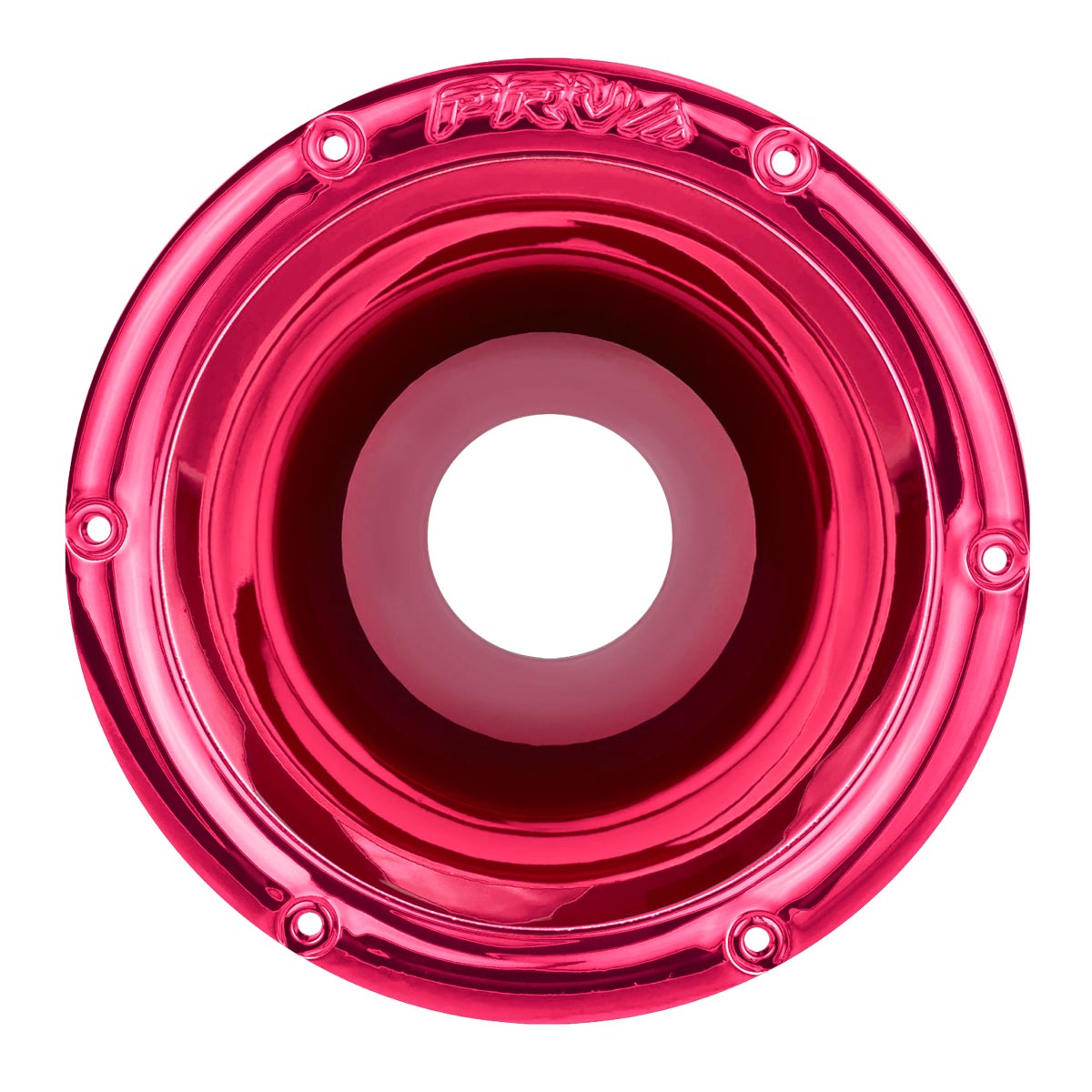

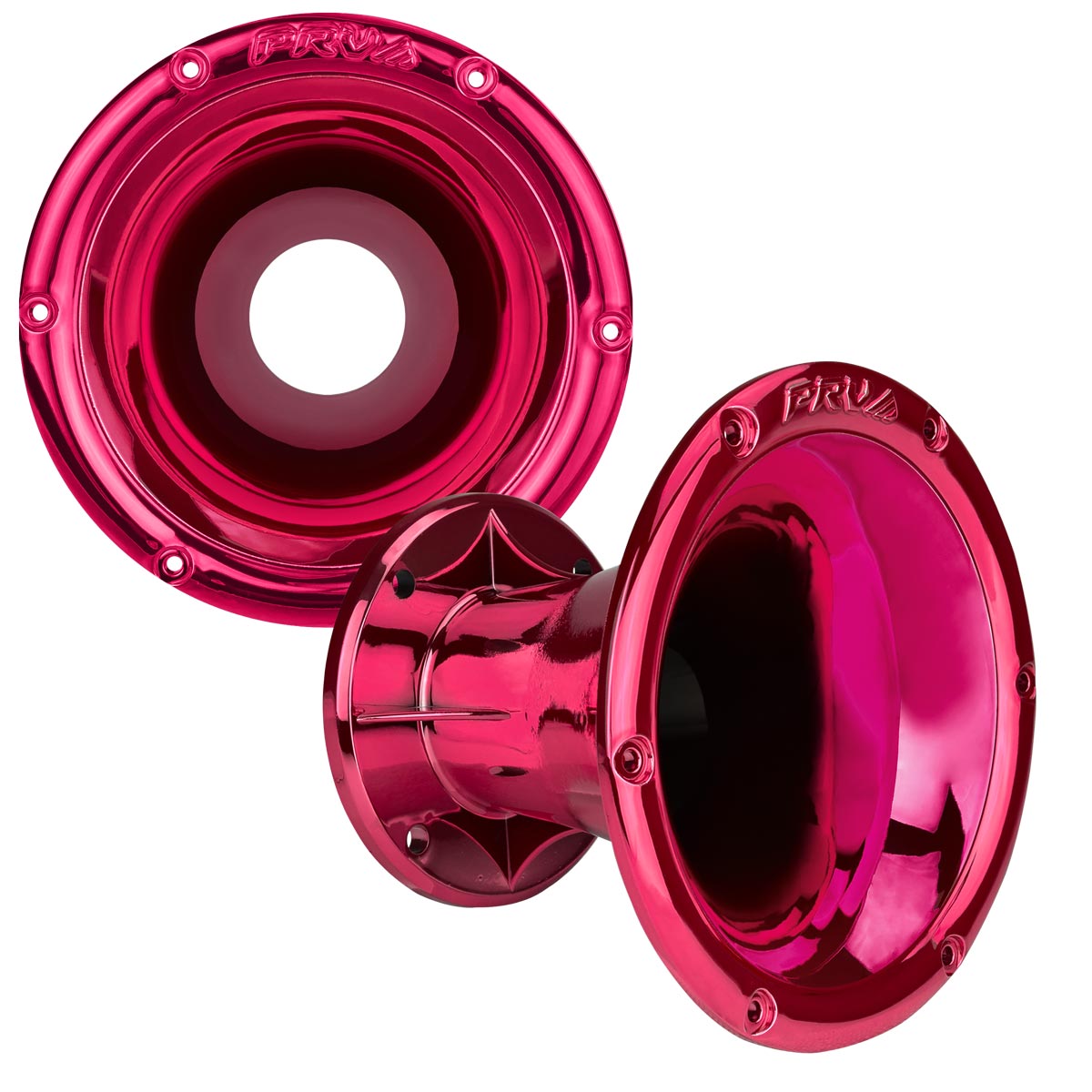

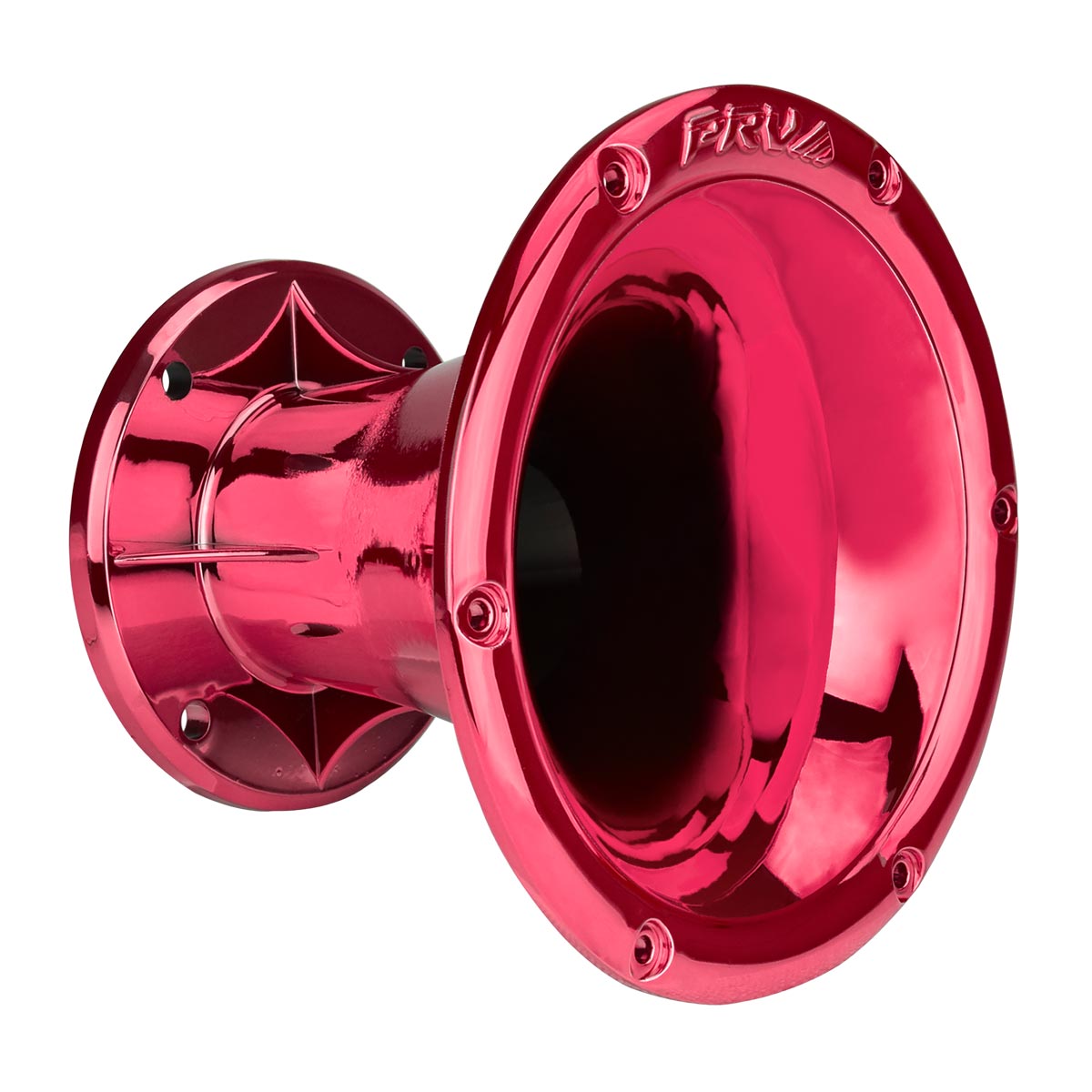

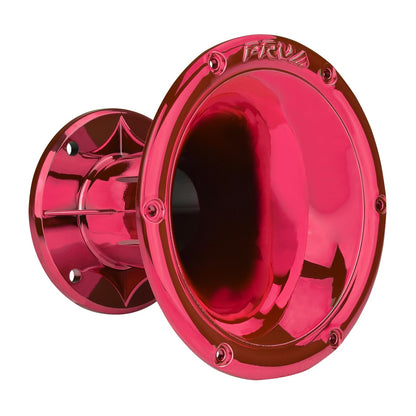

PRV WGP14-50 PINK CR Waveguide
$16.91 USD
$16.91 USD
$16.91 USD
Sale
Sold out
Couldn't load pickup availability
About the Product
2″ Exit – ABS Plastic Wave Guide – Bolt-on
- 2” Throat Diameter
- Light weight
- Bolt-on
- 45° x 45° Nominal Coverage
GENERAL SPECIFICATIONS
| Throat Diameter |
2” (50.8 mm) |
| Mounting Type |
Bolt-on |
| Hole Dimensions |
0.31″
8 mm |
| Bolt Circle |
4″
101.6 mm |
| Nominal Coverage |
|
| Horizontal |
45° |
| Vertical |
45° |
| Flare type |
Exponential |
| Material |
Plastic (ABS) |
| Finish / Coating |
Several Colors |
| Dimensions |
|
| Height |
6.92″ (175.7 mm) |
| Width |
6.92″ (175.7 mm) |
| Depth |
5.30″ (134.6 mm) |
| Mounting Depth |
5.02″ (127.6 mm) |
| Baffle Cutout |
|
| Diameter Circle |
5.75″ (146 mm) |
| Net weight |
0.51 lb (0.23 kg) |
